This might sound obvious, but if we’re going to make 60% of the inputs to our physical economy using biology, we are faced with the profound challenge of actually making a massive amount of physical product.

Today, there are 61m liters of operating bioreactor capacity globally, only 10m of which are unreserved and only 2m of which are unreserved and food grade. According to BCG, microbes are expected to produce 15 megatonnes of alternative protein by 2030, which would require 10B liters of fermentation capacity. The promise of cultured meat or producing other physical inputs for the economy (e.g. plastics) requires not only adding capacity but also realizing even greater cost breakthroughs, and this may not be feasible with current production methods.

As is often the case, challenges in the world of therapeutic development are distinct but related. Cetus and Genentech — who have legacies in the industrial world — burst onto the scene in the 1970s with the revolution in recombinant DNA technologies, and since then, drug modalities have become increasingly varied and complex with each passing year. Today, over 50% of new drugs are being produced biologically. We now not only have small molecules, recombinant proteins, and monoclonal antibodies but also myriad therapeutic modalities: drugs with compositions that range from nucleic acids to whole cells, with various chemical or polymeric formulations. Adding to the complexity, the dynamic range of production volume now spans n-of-1 therapies to rare populations to global vaccines, requiring more flexible production scales.

As therapies become ever more complex, we’ll need meaningful manufacturing innovation to produce them. Moreover, Covid-19 highlighted the fragility of our existing biomanufacturing infrastructure. All this to say, we have significant challenges to overcome, and we need manufacturing paradigms that are robust, flexible, and scalable.

Today, we want to share some of what we’ve learned about what it takes to actually make all of that stuff and, ultimately, to design products with manufacturing in mind. We’ll first share some additional context around the challenges. Then, we’ll share some innovative approaches we’ve seen folks taking to tackle these challenges and what we hope to see from an investing standpoint.

One last caveat: While we speak generally here about “fermentation” and “biomanufacturing,” it’s worth noting that this can mean a lot of very different things (see this quick laundry list for orientation).

Context — synthetic biology generally

It has been an exciting decade for the world of synthetic biology, and more is coming with rising institutional and governmental support. For example, just last month, the White House announced the launch of new biotechnology and biomanufacturing initiatives backed by $2 billion+ in funding (implementing many of the recommendations put forward by our friends at Schmidt Futures). $1 billion will come from the Department of Defense to “catalyze the establishment of the domestic bioindustrial manufacturing base that is accessible to U.S. innovators.”

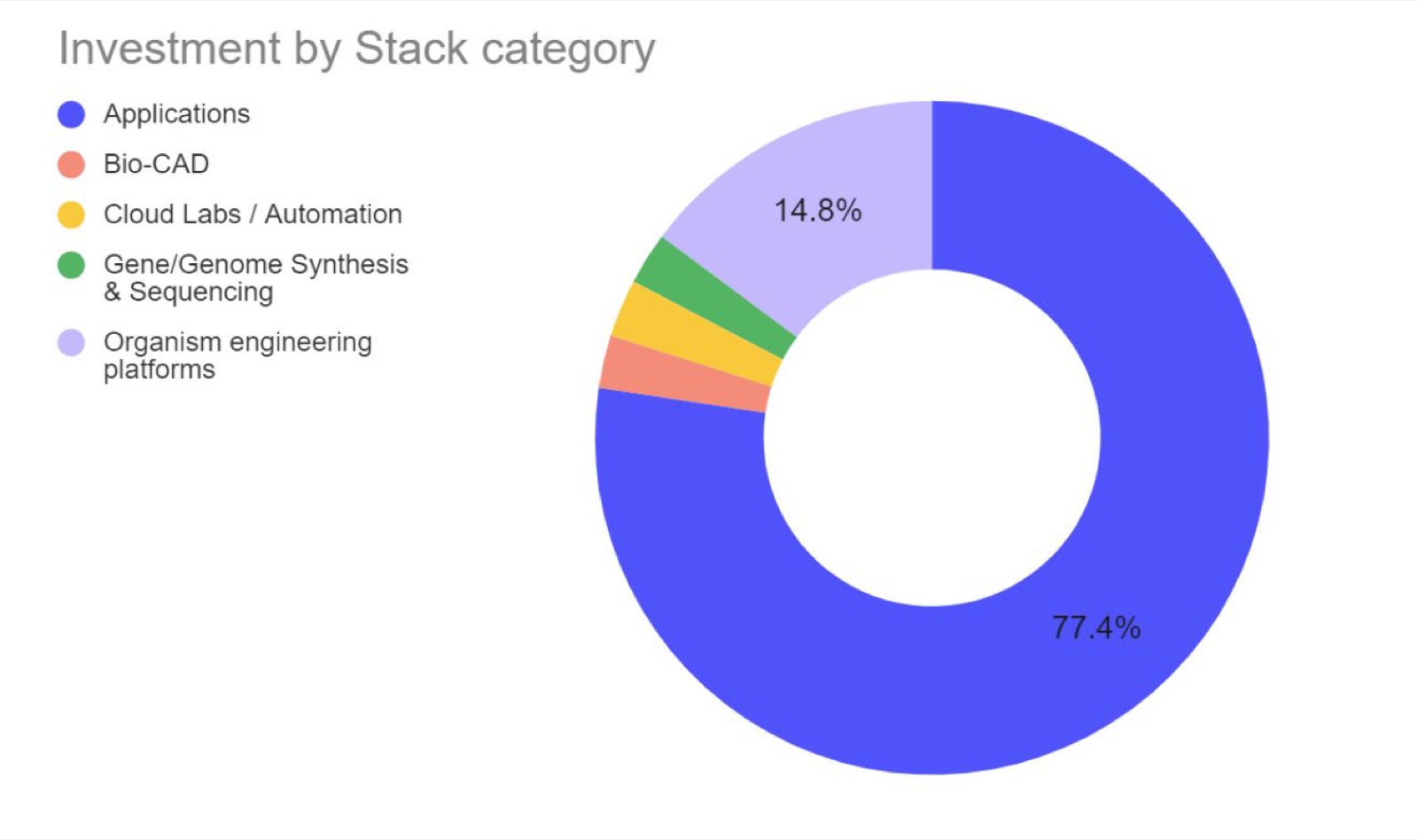

Unsurprisingly, venture investment has grown as well, with synthetic biology startups raising nearly $18 billion in 2021, nearly as much as in all prior years since 2009 combined. Nearly 80% of these dollars have gone towards companies developing specific products, often in food and nutrition or health and medicine. Another 15% of these dollars went towards organism engineering platforms. Almost none went to biomanufacturing infrastructure or bioprocess development innovations.

‍

As a result, application-focused companies are needing to hire teams of process engineers and fermentation specialists not only to manage scale-up risk but often also to put large amounts of steel in the ground themselves. This operational approach requires considerable specialized expertise, the ability to manage long lead times, and large amounts of capital — all of which are hard to come by for startups. Organism development companies rely on application-focused companies to shoulder the capital expense and manage technical scale-up risk, both putting their fate in the hands of others and making it hard to capture value.

Paired with evolving market conditions and unforgiving economic targets, these scaling challenges create a tough landscape for growth-stage companies and a fundamental bottleneck for the field as a whole. As a result, we think that some of the most interesting opportunities come from making a dent in these challenges.

Context – pharma

The last two decades have been remarkable. The fidelity with which we can intervene in disease has greatly expanded. Clinicians now have access to once-unimaginable interventions that significantly modify and treat disease progression versus simply ameliorating symptoms.

Antisense oligonucleotides were one of the first next-generation modalities to enter the clinic, though the field has had fits and starts after the first therapy (Fomivirsen)  was approved in 1998 — only to be pulled from the market a few years later. Over the succeeding 20 years, we learned a lot about stability and delivery and now see significant potential in this programmable therapy.

The first autologous adoptive cell therapies were approved (Kymriah and Yescarta in quick succession) in 2017. These therapies take patients’ own immune cells and supercharge them to attack cancer cells. These treatments cured deadly cancers in a significant subset of patients and show durable responses more than 10 years after treatment.

Spark Therapeutics received the first approval in the US for a gene therapy for its treatment targeting a rare form of inherited retinal disease in 2018. This treatment stops the progress of a debilitating disease that ultimately leads to blindness.

Now, what do all these have in common other than being incredible treatments?  They are some of the most expensive therapies on the market due to their lengthy and complex manufacturing processes. Yescarta and Kymriah have a list price of $375k and $475k, respectively. Luxturna has a list price of $425k per eye. Spinraza has a list price of $750k in the first year, followed by $375k per year thereafter.

Significant investments are being made in approaches that enable better manufacturing to deliver on the promise of these therapies. If we want these treatments to be available more broadly, we need methods and tools that not only decrease the cost of research and development, but fundamentally of manufacturing.

As usual, brilliant people are getting creative

Over the last year or so, we have seen a whole suite of folks come up with creative ways to tackle these problems:

1. Build, finance, or get better at what we already know how to do. In the industrial biology world, this tends to look like batch-based, stir-tank stainless steel bioreactors. Tackling the capacity bottleneck solves a critical problem for young companies, firstly allowing folks to shift Capex to Opex and secondly radically accelerating time to market. We’ve seen a variety of variations on this theme. For example:
   1. Pair capacity with hard-won expertise, offering process optimization services together with capacity as a CDMO. For example, BioBrew brings decades of expertise from Ab-InBev to aspiring young biology companies. Perfect Day also just announced the launch of a similar play, Nth bio, to help precision fermentation companies with tech and scale-up services. Resilience is building end-to-end manufacturing services to broaden access to complex medicines and gobbling up smaller, legacy players to centralize expertise. There are also several newer entrants in the space at various scales, like Planetary and Boston Bioworks.
   2. Plug-in tools or services for existing systems — For example, BioRaptor offers process optimization tools that can be run on in-house systems.
   3. Focus on infrastructure finance — For example, Synonym focuses on financing capacity that others can then operate.
2. Find creative ways to use existing infrastructure — Following the biofuel boom & bust, for those open to the challenge of anaerobic fermentation, there’s a big chunk of available infrastructure that’s aching for a new use case. Bluestem Bio is an early team here; Superbrewed Foods (formerly White Dog Labs) is another example.
3. Develop new technology that unlocks more economical, flexible, or otherwise better production methods.
   1. Continuous fermentation — Since the 1950s, batch or fed-batch fermentation has been the standard design for most biomanufacturing approaches. However, too much downtime between batches significantly limits overall productivity. We have seen some companies take (variations on) continuous approaches and realize significant economic gains. For continuous approaches to make sense at scale, companies must tackle challenges like evolutionary drift and find new solutions to manage contamination — Pow.bio is an early company focused here.
   2. Cell-free systems — Cell-free systems possess advantages relative to living organisms in the right contexts. Because they aren’t living organisms, they don’t require central metabolism and, therefore, can be much more efficient relative to inputs. They can also produce products that would be toxic for a host cell. Cell-free expression systems have been used as research tools for more than 50 years but are now increasingly practical for myriad other applications. Solugen and Debut are examples of companies working in the industrial biotech sector. For those interested in learning more about cell-free, we recommend this blog post by our friends at KdT. However, this is not limited to the industrial sector. Swiftscale Biologics, acquired by Resilience, is using a cell-free approach to produce biologics (i.e., proteins used as therapeutics).
   3. Engineered cells for more complex pathways and products — Often, highly engineered systems are the best route for robust expression and product profiles. Research out of Jay Keasling’s lab recently demonstrated biosynthesis of the highly complex plant natural products vinblastine and vincristine, demonstrating a path to scalable production of over 3,000 different related molecules in engineered yeast. GRO Biosciences has developed a platform that leverages a genomically recoded organism to allow for scalable, site-specific incorporation of non-standard amino acids in protein therapeutics. Asimov and 64x Bio design mammalian cell lines that enable scalable production of components for advanced modalities such as cell and gene therapies and antibodies.
   4. Reframing the problem to solve for biology challenges — Scale-up is notoriously challenging as conditions aren’t consistent from small, benchtop bioreactors to thousands-of-liters tanks. This change in the environmental conditions can lead to long process development timelines and, in the worst case, a process that doesn’t scale at the economics required to be successful. One interesting method for side-stepping the problem is the transition from scale-up to scale-out. Instead of continuously scaling capacity, teams are instead leveraging the same process but scaled across many bioreactors, which limits technical risk and may improve speed to market. Additionally, scaling manufacturing of autologous cell therapies is a major challenge. In this process, cells are taken from a patient, processed ex vivo, and then returned to the same patient. This is a major hurdle for the scalability of this therapeutic approach, and significant investment is flowing into companies like Ori Biotech. An alternative approach is in situ cell reprogramming, which converts some of the challenges and complexity of autologous cell manufacturing to one of viral/nonviral delivery.

Some observations

Fundamentally, the success of any given biological product (and product company) depends on finding an economical way to manufacture that product. Today, because many product companies lack access to economical manufacturing tools, services, and infrastructure, teams are forced to in-house this work, often hiring process engineering teams and using precious venture dollars to put steel in the ground. If every startup needs expertise in initial product development, strain engineering, and manufacturing at various scales, time and cost to market will become unmanageable for many startups. This is especially true for startups in spaces like food with narrow margins.

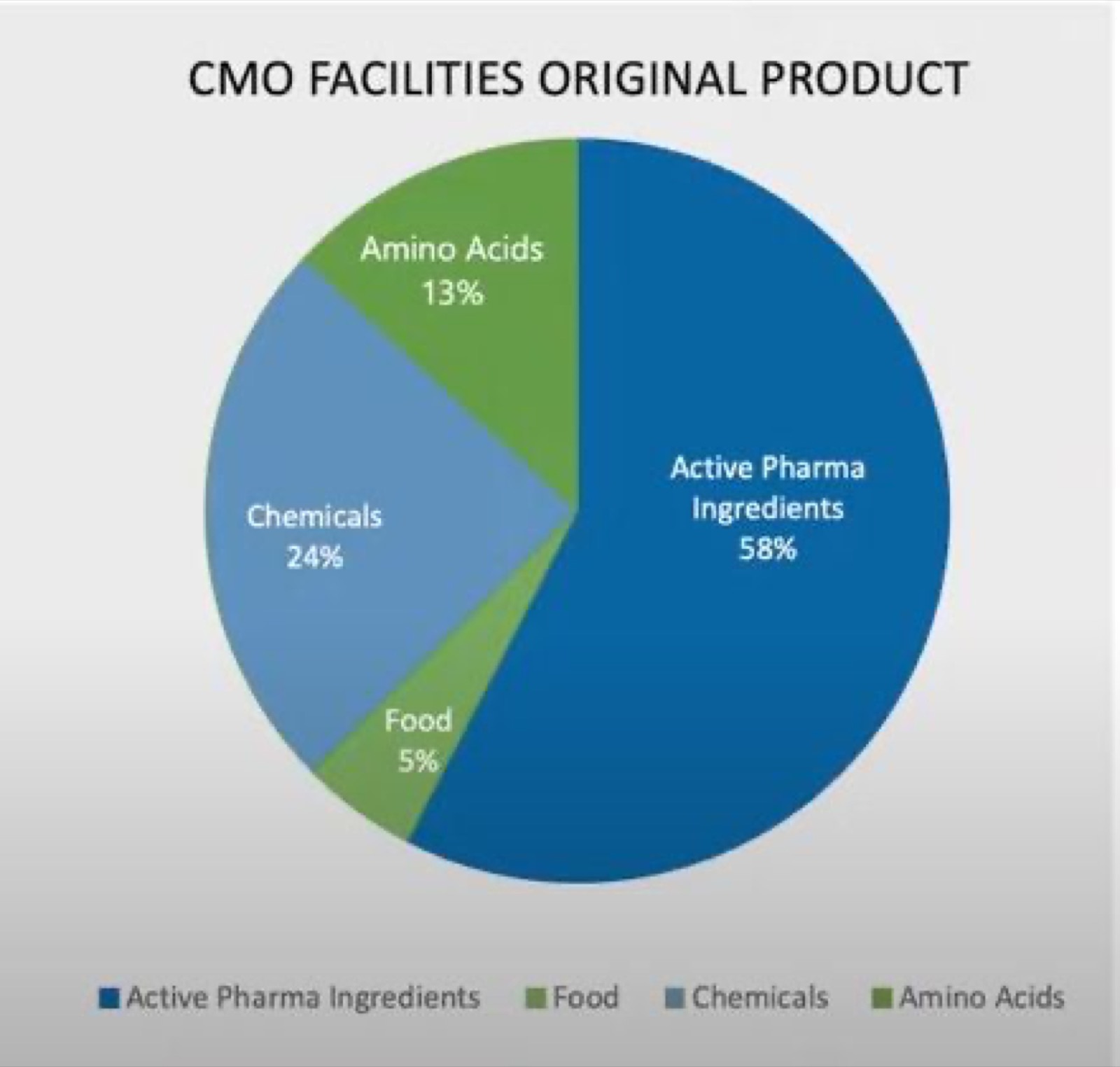

As a result, for product companies to be successful, we will need to radically increase access to manufacturing capacity, especially at intermediate scales. In the world of industrial biology, there are simply too few CDMOs available to produce non-pharma products at viable economics regardless of scale. Most CMOs were built 20-50 years ago for pharma, making them over-engineered for folks’ requirements (and, generally, not viable for products with price points lower than about $100/kg). Early on, companies often produce initial product demonstrations in-house and/or work with academic institutions to secure available capacity. Thus, many aspiring companies hit their first real capacity wall at the pilot scale when they find that few facilities are available to begin with, even fewer are food grade, even fewer manufacture domestically, and the very few that are available require years of advance planning to secure.

In the pharma world, companies face similar challenges. While it may be easier to secure capacity in a production environment, the gap between lab and production environments has been characterized as the “valley of death.”

In short: Whether food, industrial, or pharma, time and cost to market are every young bio company’s biggest enemies — and today’s CDMO options do not equip startups nearly well enough against these formidable foes.

Downstream, downstream, downstream

While easily forgotten, downstream processing is mission-critical and intimately coupled with both strain development and manufacturing processes. Downstream processing accounts for roughly 60% of the cost of producing a biological drug and has not improved or scaled at the same rate as upstream processing. Additionally, while upstream processing is specific for each product, the component parts are mostly the same (e.g., cells, media, bioreactor); in downstream processing, there is significantly more variability depending on the product being produced. Accordingly, it is critical to factor DSP costs into a TEA early and make sure that chosen products and manufacturing methods are designed to work with necessary downstream processes.

A young company’s job? To drive the way the road is, not the way it should be

To be successful, companies need to get a lot of things to converge: the early biology, strain or cell line development, process development, manufacturing at scale, and downstream processing — as well as, of course, making sure all of the above are tailored to the specific commercial and regulatory environments for their products of interest.

This is incredibly complex and requires startups to convene a long laundry list of tools and partners around the table, which are expensive and/or require long lead times to secure. Furthermore, suppose the whole purpose of R&D is developing something that can scale. In that case, you better have ways of testing the implications of decisions in the development process on performance at scale.

This is really hard. Robust TEAs are essential and should be upgraded as folks learn more about their processes over time. Companies need to plan for manufacturing and downstream processing significantly in advance and ensure they have the expertise to do so readily available in whichever way makes economic sense (might be an in-house team or a great set of advisors). As a potential starting point, here is a great framework and tool developed by Michael Lynch.

Venture investing — what we’re excited to see

These integrated technical and operational challenges are existential for young companies. Therefore, we are convinced that there are meaningful companies to be built that expand the menu of manufacturing options and accelerate feedback loops between early R&D and scaled-up production. We see opportunities in a few areas:

→ Differentiated technical manufacturing approaches for big classes of products

• These need to be relevant for a large enough portion of the market and drive at least 10x, if not 100x, economic improvements. For example, we’re intrigued by the promise of continuous fermentation for industrial projects, assuming you can find ways to scalably wrangle the challenges of contamination and genetic drift.
• Alternatively, we see considerable opportunity for variations on today’s methods that drive innovation in other dimensions — e.g. flexibility and time-to-market. For example, in some cases, scale-out manufacturing paired with automation can turn a science problem into an engineering one, offering folks faster time to market and more flexibility in terms of scaling up and down.

→ Product-focused companies that are leveraging existing infrastructure in a thoughtful way

• We touched on this above, but the idea of allowing currently unproductive infrastructure to be better utilized (e.g. ethanol infrastructure in the midwest) is intriguing to us, provided folks are up for the metabolic engineering challenges involved.

→ Improved sensing technologies to enable more precise process engineering

• While much has been written about the power of various “omics” data in developing more performant strains or cell lines and optimizing manufacturing processes for those strains/cell lines, we remain hugely limited in what we can economically measure.
• Finding ways to collect a much wider range of data that speak to evolutionary fitness, metabolic function, and ultimately performance at scale would be hugely valuable. Matterworks is an example of a young company working on faster and much more comprehensive analysis of analytes present in a biological sample. Whereas today, maybe a dozen high-priority analytes are measured at various timepoints, Matterworks is developing a much higher fidelity view of the process.
• Relatedly, finding ways to expand what we can measure in real-time during an individual fermentation (and, thus, enable much more precise development and control of manufacturing processes) would make a big difference. Several interesting approaches are being tested in this space, e.g. cell-based sensing or Raman spectroscopy.

→ Generally making it easier to get stuff out of the lab and into the world, even with today’s methods

• For many of the reasons we’ve already touched on, barriers to taking an early product or process from academia into a commercial setting are incredibly high, and doing so requires specialized expertise (even though the playbook for doing so can be fairly repeatable).
• As a result, we can see that companies who make this process more frictionless and democratize access to manufacturing capacity (even using today’s methods!) can add a lot of value. These can range from simply building more CDMOs, to financing the construction of new manufacturing infrastructure, to other innovative business models which create more streamlined scale-up pipelines for young companies.
• We’re not yet sure what’s venture backable here; the main challenges we foresee center around long-term defensibility and margin maintenance. However, we believe this work is critical for the field and are excited to talk to folks taking creative new approaches.
  ‍
